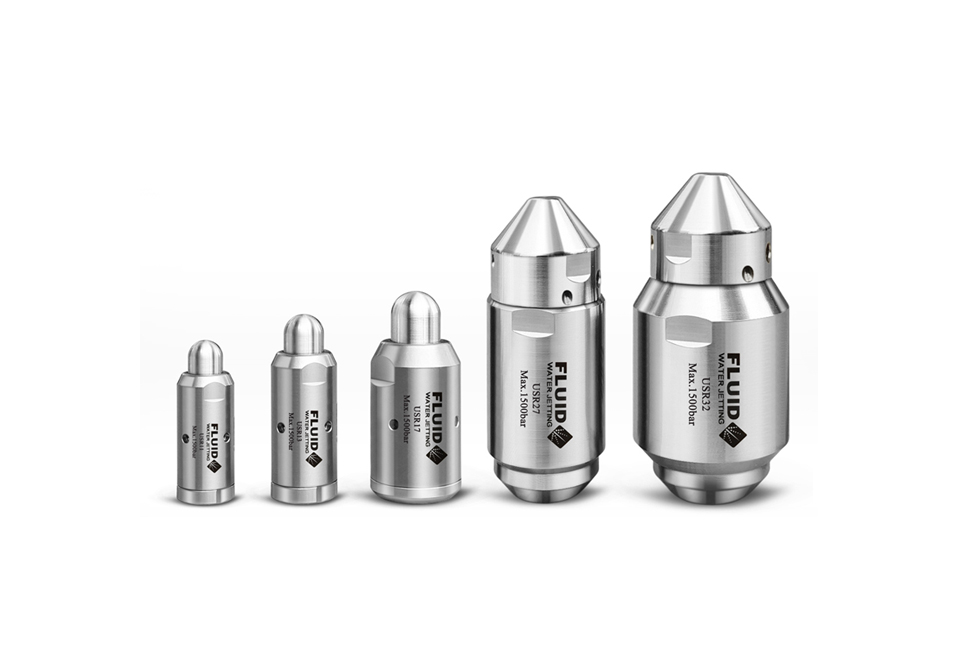

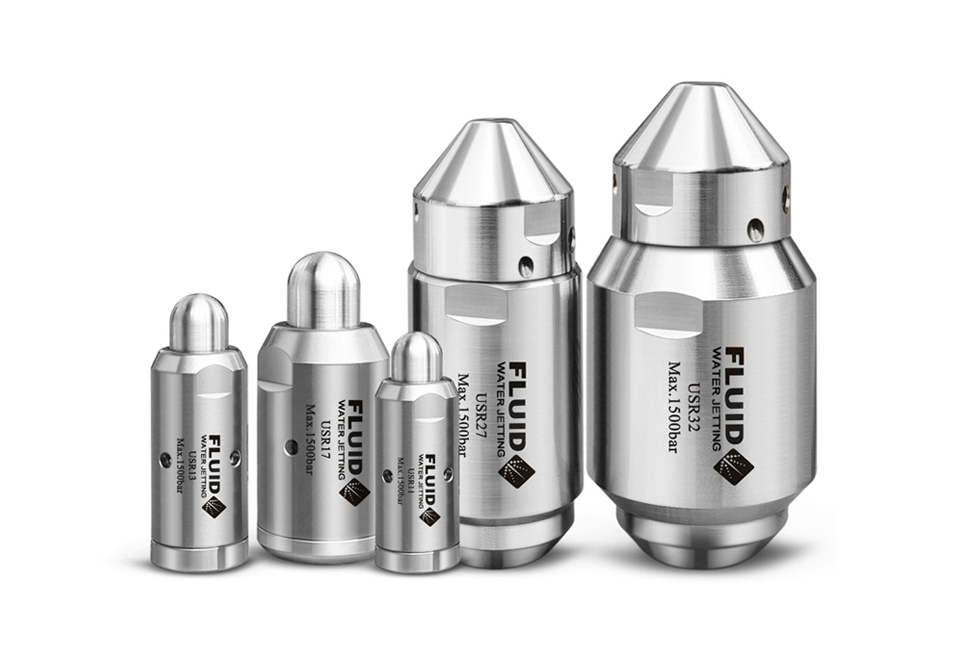

New USR Nozzles
Product parameters

New USR Nozzles (Max.1500bar)

USR11、USR13、USR17、USR27A/B、USR32A/B

● USR27A (Drilled orifices)
● USR27B (M3 Nozzles)

● USR32A (Drilled orifices)
● USR32B (M3 Nozzles)


SPECIFICATIONS:


USR11

OD:11mm

Length:40mm

USR13

OD:13mm

Length:37mm

USR17

OD:17mm

Length:41mm

USR27A/B

OD:27mm

Length:69/73mm

USR32A/B

OD:32mm

Length:69/73mm



Body type

Connecting thread

Flow range

External
diameter

Suitable i/d

range of tubes

USR11

1/4-28 LH/RH

M7

10~36 l/min

11mm

14~22mm


USR13

1/4-28 LH/RH

1/16-27 NPT (Max.1035bar)

M7


11~44 l/min


13mm


15~25mm




USR17

1/4-28 LH/RH

1/16-27 NPT (Max.1035bar)

1/8 NPT (Max.1035bar)

3/8-24 LH/RH

1/8 BSPP

M8/M8X1




13~65 l/min




17mm




22~33mm


USR27A/B

3/8-24 LH/RH

1/8 BSPP

M10X1

1/8 NPT (Max .1035bar)


13~65 l/min


27mm


36~60mm


USR32A/B

3/8-24 LH/RH

1/8 BSPP

M10X1

1/8 NPT (Max. 1035bar)


13~65 l/min


32mm


45~65mm
