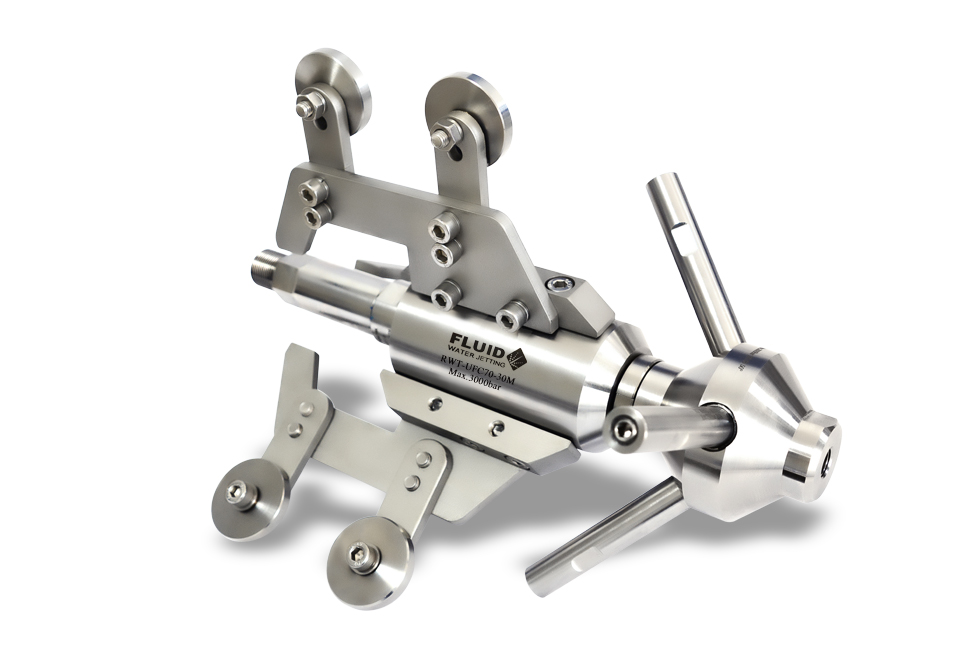

UFC70 SERIES
Product parameters



FEATURES:

□ Magnetic rotation speed control will reduce wear and gives better jetting impact.
□ Four standard head configurations.


RWT-UFC70-10M*

SPECIFICATIONS

Max. Operating pressure：

1000 bar

Max. Flow rate：

300 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread：

Adapters provided:

□M36*2.0 (Max1600bar)

□M24*1.5 (Max2000bar)

□1/2" NPT (Max1035bar)

□3/4" NPT (Max1035bar)

□1" NPT (Max1035bar)


RWT-UFC70-22M*

SPECIFICATIONS

Max. Operating pressure：

2200 bar

Max. Flow rate：

168 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread：

Adapters provided:

□M36*2.0 (Max1600bar)

□M24*1.5 (Max2000bar)

□1-1/8-12 UNF (Max3000bar)


RWT-UFC70-30M*

SPECIFICATIONS

Max. Operating pressure：

3000 bar

Max. Flow rate：

75 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread：

Adapter provided:

□1-1/8-12 UNF (Max3000bar)
