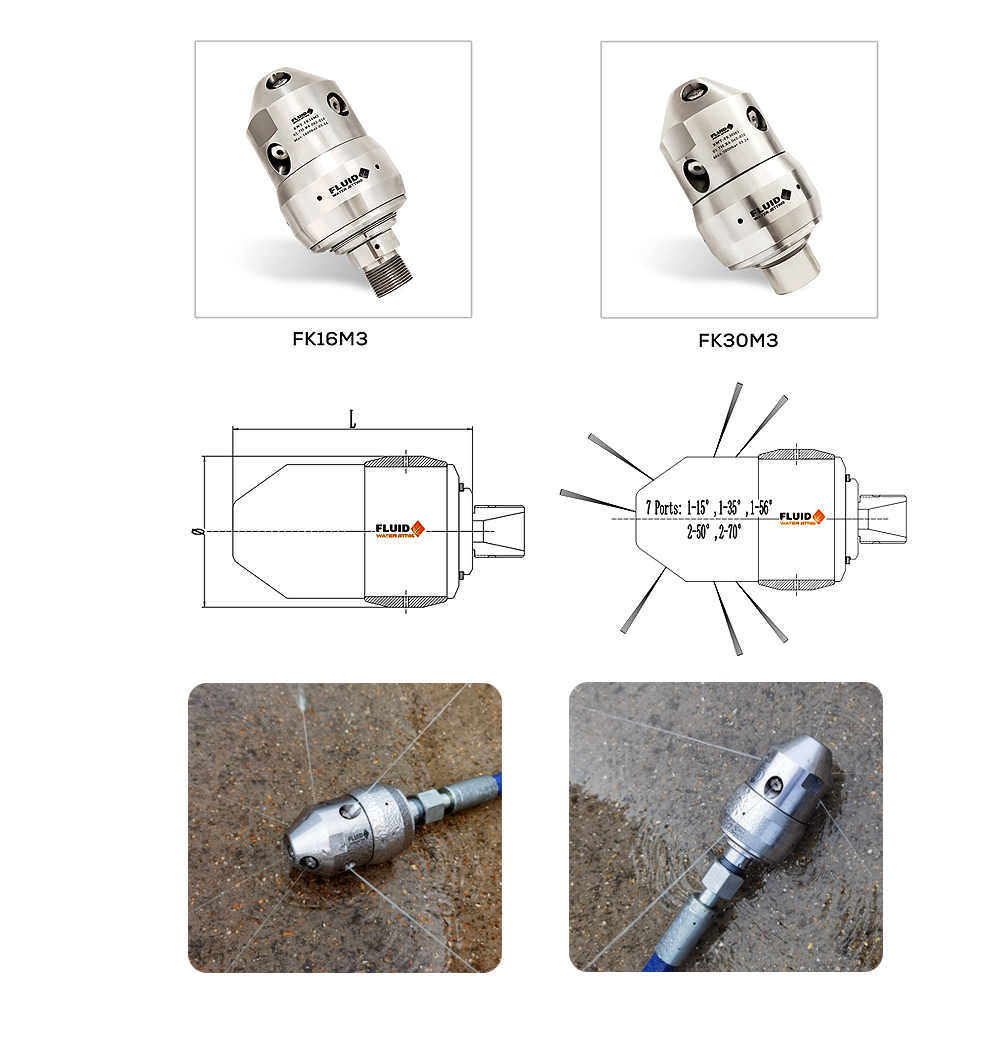

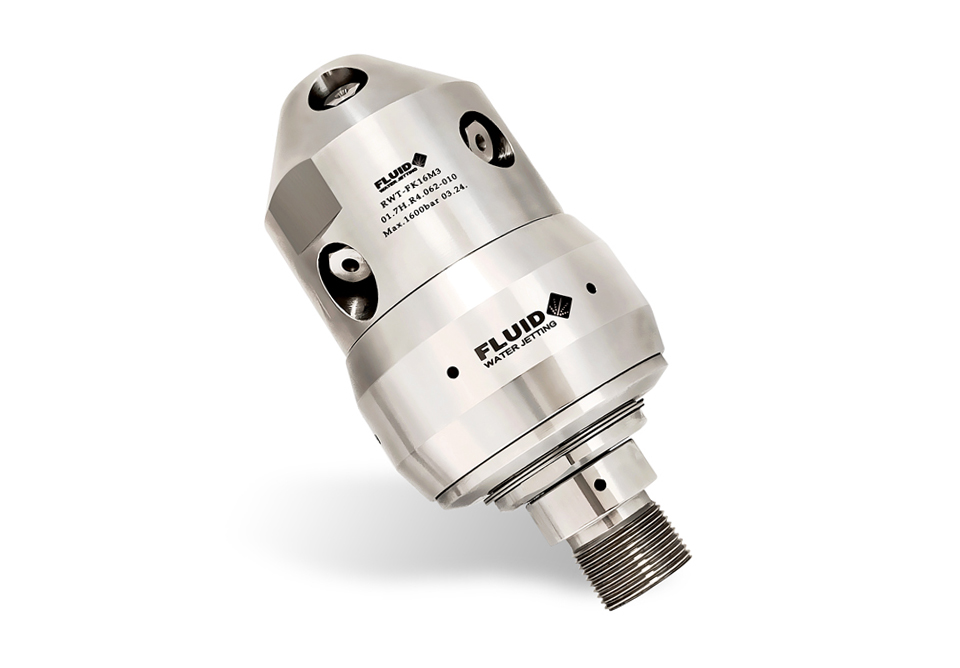

FK-M SERIES
Product parameters

FK-M SERIES


FEATURES:

□ Magnetic rotation speed control will reduce wear and gives better jetting impact.
□ Labyrinth Seal can provide a longer lifetime.


TYPES AND SPECIFICATIONS:


TYPES

Max

pressure

Max

flow rate

Diameter
ømm

Length
L=mm


Inlet Connection


FK16M3

（HP Seal）


1600


58 l/min


70


111

M24*1.5 Male

3/8 NPT Female (Max 1035bar)

3/8 BSPP Female

9/16" Collar and Gland 13/16-16


FK16M3/P

（Labyrinth Seal）


1600


75 l/min


70


111

M24*1.5 Male

3/8 NPT Female (Max 1035bar)

3/8 BSPP Female

9/16" Collar and Gland 13/16-16


FK30M3

（HP Seal）


3000


42 l/min


70


111


3/8" Collar and Gland 3/4-16

9/16" Collar and Gland 1-1/8-12
