NEW UBD TUBE CLEANING NOZZLES
Product parameters


NEW UBD TUBE CLEANING NOZZLES (Max.1500bar)

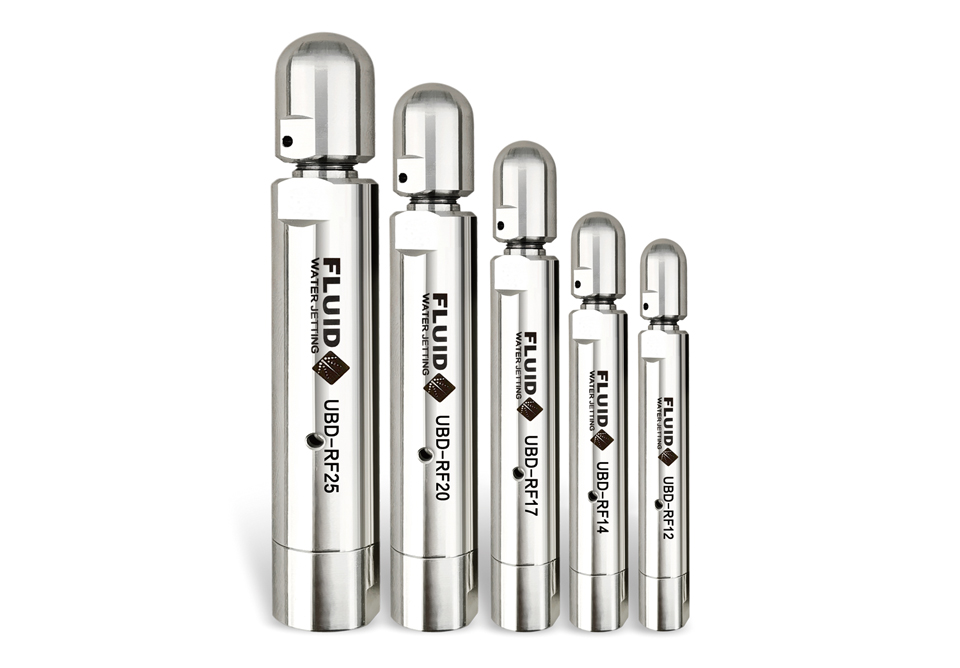

UBD-RF12/14/17/20/25


UBD is an efficient tube cleaning nozzle, engineered to deliver strong water jetting impact through its lower rotational speed and minimal pressure loss.


SPECIFICATIONS

Body Type

Connecting
Thread

Flow Range

External
Diameter

Suitable i/d
range of tubes



UBD-RF12

1/4-28 LH/RH

M7

1/16-27 NPT(Max.1035bar)

M8X1

M8



11~40 l/min



12mm



15~22mm




UBD-RF14

1/4-28 LH/RH

M8X1

M8

3/8-24 LH/RH

1/8 BSPP

M10X1

1/8 NPT(Max.1035bar)




11~55 l/min




14mm




17~26mm



UBD-RF17

3/8-24 LH/RH

1/8 BSPP

M10X1

1/4 BSPP

1/4 NPT(Max.1035bar)



12~60 l/min



17mm



20~32mm


UBD-RF20

M10X1

1/4 BSPP

1/4 NPT(Max.1035bar)

9/16-18 LH/RH


13~67 l/min


20mm


23~38mm



UBD-RF25

M10X1

1/4 NPT(Max.1035bar)

3/8-24 LH

9/16-18 LH/RH

3/8 NPT(Max.1035bar)



19~76 l/min



25mm



30~50mm
